Product Description

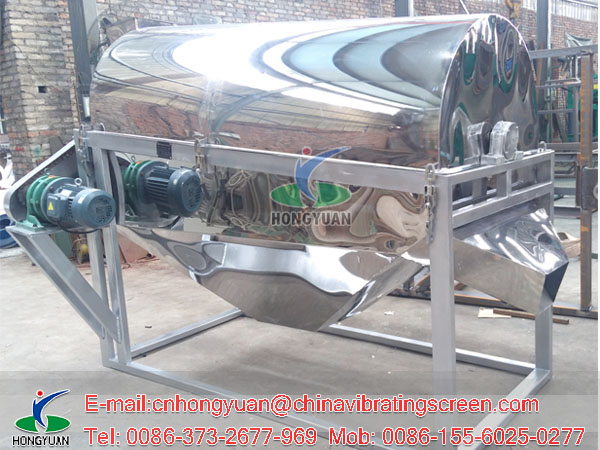

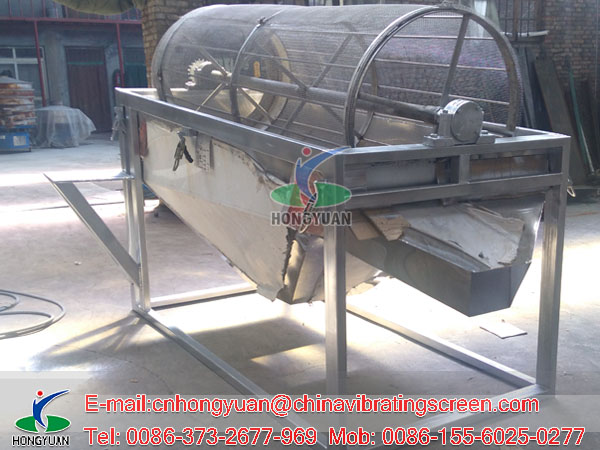

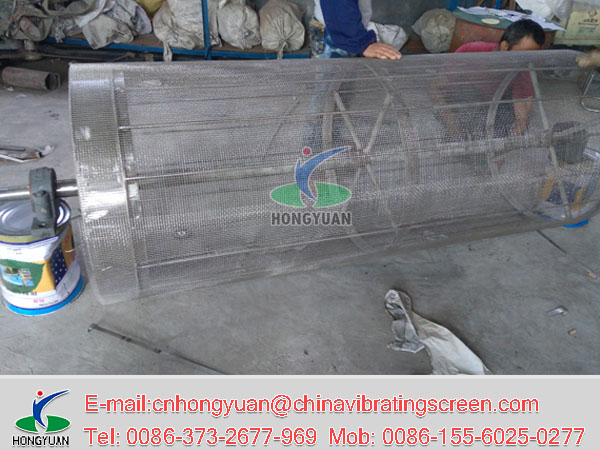

industrial screeners sifting handling drum dirt screener is one kind of drum screen which is mainly composed by several circular screen mesh and closed by the shielding cover so as to reduce the environmental pollution. Revolved by the speed control and deceleration system, the sand material can be separated in different grades from top to bottom through the different aperture size.
Oversize will be discharged from bottom of tail part, and the undersize will be discharged from outlet of front part. As per different size sieving demand, there will be 1-4 screen section from small size to big size, the oversize than the 4th size will be discharged from outlet.
industrial screeners sifting handling drum dirt screener can be equipped with the comb type cleaning device which can make the continuously cleaning for screen mesh during the sieving process so as to make the screen mesh keep smoothly without jam and sticky.
Working Principle

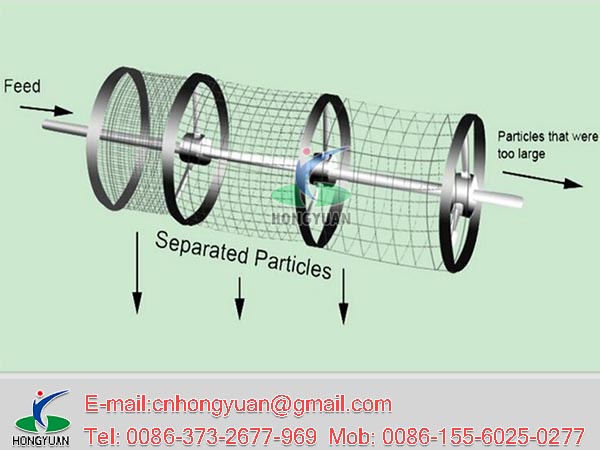

Feeding into the industrial screeners sifting handling drum dirt screener, sand material is lifted up by the rotation and aerated as it falls back down. This action is repeated with each revolution along the length of the drum screen. The finer material passes through the screen openings while the larger material tumbles towards its eventual exit at the rear of the drum
Packing & Shipping

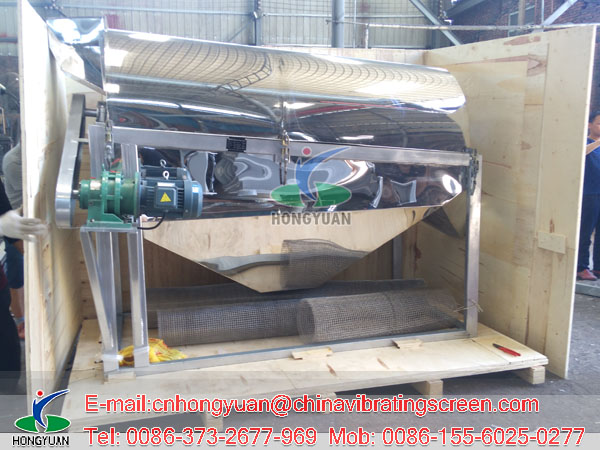

Packing in Fumigation Plywooden Box
Packing Size: 2770*1650*1950mm
Loading to the Container
Technical Data
For more information on industrial screeners sifting handling drum dirt screener, please visit our website:http://www.chinavibratingscreen.com/product/33.html or
contact me by: cnhongyuan@chinavibratingscreen.com
Mob&Wechat&Whatsapp: +86-155-6025-0277
QQ: 70752106
| Model No. | Length Range
(m) | Screen Segments | Mesh size(mm) | Motor Power(kw) | Inclination Angle | Max granules Size(mm) | Revolving Speed
(rpm) | Capacity (m3/h) | Dimension(mm) |
| GTSΦ600 | 2-4 | 1-3 | 5-35mm | 2.2-3 | 7° | 35 | 20 | 10 | 5400*1150*1200 |
| GTSΦ800 | 2-4 | 1-3 | 5-40mm | 2.5-5.5 | 7° | 45 | 18 | 14 | 5600*1300*1500 |
| GTSΦ1000 | 2-6 | 1-4 | 5-45mm | 3-7.5 | 7° | 60 | 16 | 16 | 7400*1400*2240 |
| GTSΦ1200 | 2-8 | 1-4 | 5-50mm | 4-11 | 7° | 70 | 15 | 20 | 9480*1580*3400 |
| GTSΦ1500 | 2-8 | 1-4 | 5-55mm | 4-15 | 7° | 80 | 12 | 32 | 9700*1860*3700 |
| GTSΦ2000 | 2-9 | 1-4 | 5-60mm | 5.5-18.5 | 7° | 90 | 8 | 45 | 11000*2400*4500
|
Other Related Machine

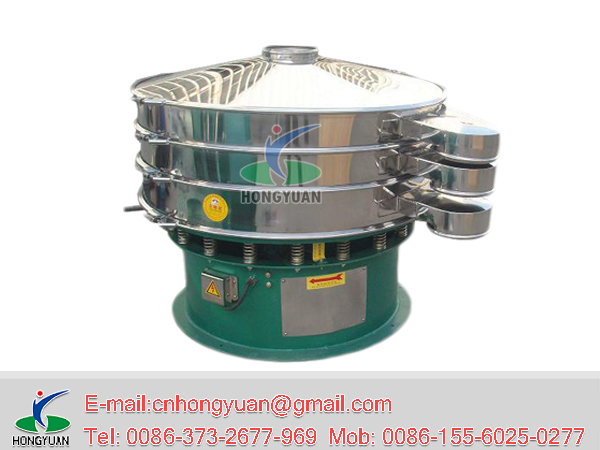

Rotary Vibrating Screen for powder granules sieving

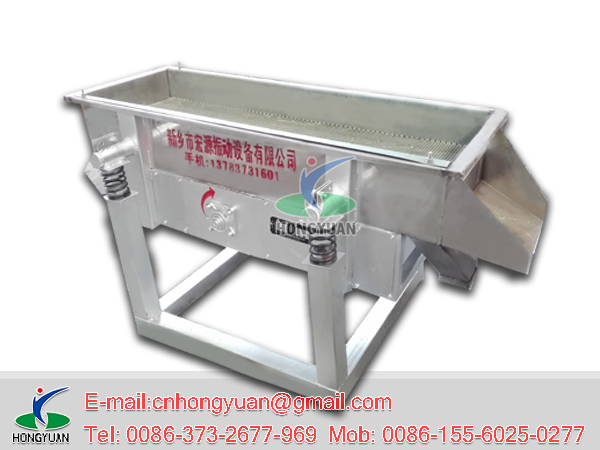

Stainless Steel Vibrating Screen
Any kinds of customized service is supported by our professional engineer's team, your inquiry will be welcomed by timely reply.
|
|

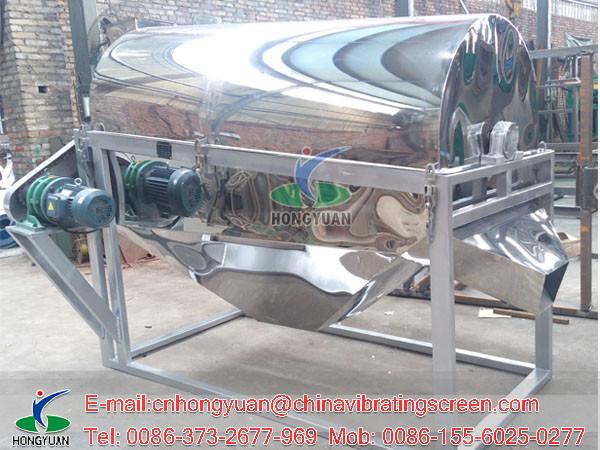

industrial screeners sifting handling drum dirt screener Images
|
