Auger feeder conveyor manufacture for poultry feed crop
Product Description
Auger feeder conveyor manufacture for poultry feed crop is a new designed for grain suction, entrucking, stack transfer and storage in village.
It has the features of small area, light weight, easy movable, high effeciency and low rate of brokage. the small suction machine is widely used for many places with safty and relibality. such as individual farmer, grain professional farmers and agricultural cooperativies.
Detailed Images
Structure of screw elevating conveyor
- Screw flight: the material of screw flight is manganese steel, it has good wear-resisting and flexible.
- Wear-resisting pipe: The material of screw pipe is PVC resin, the PVC resin screw pipe is very good wear-resisting pipe, this will prolong the service lift of screw elevating conveyor.
- Driving device: Motor, belt pulley, transmission belt and safe cover.
- Inlet device and discharge device.
Product Features & Procedure
XL-160 18 tons per hour carrying capacity grain auger is easy to carry and operated and is one convenient portable grain inhaling suction equipment.
- It has the feature of small volume, large power, convenient to carry.
- The power source can adopt the single phase which is applied for home use.
- Man power saving ideal machine for truck loading.
- Large capacity at 10-15 ton/h
- Customized length is supported(6meters,8meters,10meters is available)
- Lifting height is 3 meters
packing and delivery
Technical Data
| Model No. | Length (Meters) | Pipe diameter | Loading Capacity(t/h) | Motor phase-power(kw) | Installation | Structure | Conveying height |
| XL-100- 6 | 6 | 100mm | 5-8 | Single phase-220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-100- 8 | 8 | 100mm | 5-8 | Single phase-220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-100- 10 | 10 | 100mm | 5-8 | Single phase-220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-100- 12 | 12 | 100mm | 5-8 | Single phase-220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160- 6 | 6 | 160mm | 15-20 | Three phase-220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160- 8 | 8 | 160mm | 15-20 | Three phase-220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160- 10 | 10 | 160mm | 15-20 | Three phase-220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160- 12 | 12 | 160mm | 15-20 | Three phase-220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
Related Products
HYL-DCS Series Filling and Bagging machine HYL-30 Dust Proof Grain Cleaning and Sieving machine
K type Reciprocating coal feeder TD 250 Movable Bucket Elevator
Our sevices
Any more information, contact the following ways:
Contact person: JULY
Skype: zhu.sunshine
Wechat/Whatsapp/Mob: +8615560250277
Email: cnhongyuan@chinavibratingscreen.com
|
|

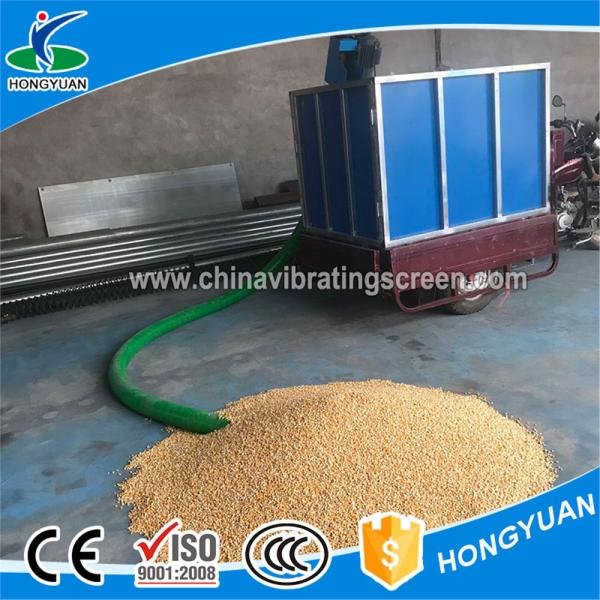

Auger feeder conveyor manufacture for poultry feed crop Images
|
